Rugged Static IP Camera Package – Garmin TD50 Mini-Display

Description

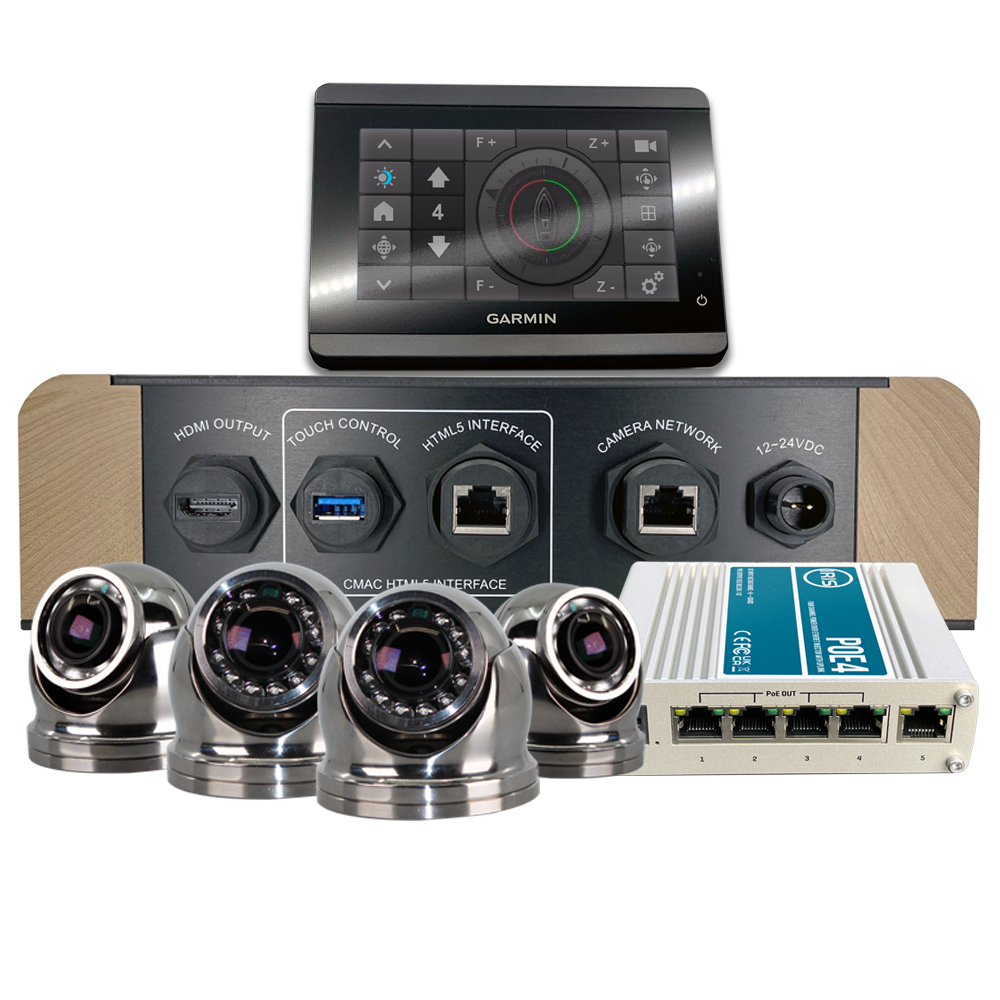

Iris are Proud to offer their Special Edition Garmin TD50 Interface bundle comprising the following – perfect for vessels 40ft and above:

1 x Garmin TD50 Mini 5″ Multi-Functional Display – preloaded with our IrisControl Camera Management Interface

1 x CMAC-NVR IP Camera Management and Recorder with 1TB Anti-Vibration HDD

1 x IrisControl App for Garmin OneHelm

1 x PoE4 Power over Ethernet Injector with 4 Ports + Uplink and Wide DC Input Voltage Range (+9 ~ +30 VDC)

4 x IRIS-S460-18 Miniature, Rugged Marine IP Cameras, 3MP Resolution, Ultra-Wide 160˚ Field of View, PoE Operation, 10m IR LED Illumination

1 x 300m Reel of CAT5e Network Cable

10 x RJ45 Connectors

Designed under agreement with Garmin, especially for the rugged and compact Garmin TD50 MFD, our special edition IrisControl App package, complete with four of our best selling S460 cameras, typically installed to cover Port and Starboard sides, Stern Facing (perfect for Back-Up / Rear View monitoring) and Engine Room monitoring. Our S460  cameras are machined from solid marine grade 316L stainless steel and are completely corrosion resistant. They also feature an ultra wide angle 1.8mm lens, built in illumination and Power over Ethernet (PoE) operation.

The CMAC recorder not only provides over 1 months continuous recording at full resolution / full frame rate, but also hosts our IrisControl App for Garmin OneHelm. Using IrisControl you can upload your vessels deck plans and even photos, and drag and drop icons to represent your camera positions. Then to switch camera views simply select the desired camera icon. As well as full screen views, from IrisControl you can select quad images and picture in picture views.

Using Garmin’s miniature TD50 touch-screen display, you know you can rely on the toughest hardware from the Worlds Leading Marine Electronics Manufacturer.

The system can support up to 32 cameras, including our Atom range of PTZ and Thermal Imaging cameras, and the IrisControl App features an ultra responsive virtual joystick for accurate camera control.

As well as the recorder and cameras, this package also includes our PoE4 Power over Ethernet injector, specifically designed to power IP devices from battery sources, RJ45 crimp connectors and a 300m reel of external grade, waterproof CAT5e network cable. Everything you need to build your own on board safety, security and surveillance system.
